BS4504 PN 25 Dimensions

bs 4504 pn 25 flanges manufacturers

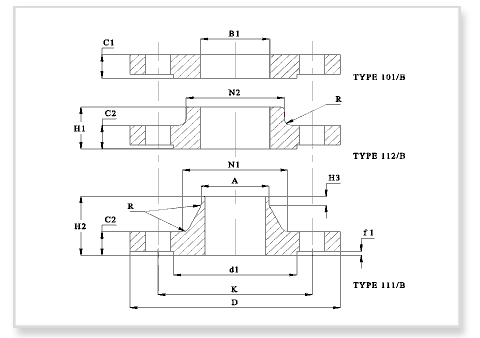

DN = Nominal size, D = Outside Diameter, A = Outside Dia of Neck , B1 = Bore of Type 101 & 112 Flange, C1 = Thickness of Plate Flange,
C2 = Thickness of Weld_Neck and Boss Flange , N1 = Dia of Weld Neck ,N2 = Dia of Boss , R = corner Radius, H1 = Length of Boss Flange,
H2 = Length of Weld Neck Flange, H3 = Length of Neck :

Note: The flanges shown are only a small part of the range covered in BS 4504.

The Facings shown are type B (Raised Face). Other Facings include:
Type A..Flat: Type C..Tongue: Type D..Groove Type E..Spigot: :Type F..Recess: Type G..O-ring Recess: Type H.,0-ring Groove:

Note : All Dimensions in mm
DNDC1C2H1H2H3RAN1N2B1d1f1
1090141622356317,2283018402
1595141622386321,3323522452
20105161826406426,9404527,5582
25115161828406433,7465234,5682
32140181830426542,4566043,5782
40150181832457548,3647049,5883
50165202034488560,3748461,51023
651852222385210676,19210477,51223
802002424405812688,911011890,51383
10023526244465126114,31341451161623
12527028264868126139,7162170141,51883
15030030285275128168,3190200170,52183
20036032305280168219,1244256221,52783
250425353260881810273,0296310276,53353
300485383467921810323,9350364327,53954
3505554238721002010355,6398418359,54504
4006204640781102010406,4452472411,05054
4506705042841102012457,0500520462,05554
5007305644901252012508,0558580513,56154
60084568461001252012610,0660684616,57205
700960-46 1252012711,0760  8205
8001085-50 1352212813,0864 -9305
9001185-54 1452412914,0968 -10305
10001320-58 15524121016,01070 -11405
12001530---  121220,0 --13505
14001755---  121420,0 --15605
16001975---  121620,0 --17805
DNDC1C2H1H2H3RAN1N2B1d1f1

Flange Bolting

K = Bolt Circle Diameter, L = Dia Of Bolt Hole,
No = Number of Holes , Size = Size of Bolts

DN K L NoSize
mm mm mm - mm
106014 4M12
15 65 14 4M12
20 75 14 4M12
25 85 14 4M12
32 100 18 4M16
40 110 18 4M16
50125 18 4M16
65 145 18 8M16
80 160 18 8M16
100 190 22 8M20
125 220 26 8M24
150 250 26 8M24
200 310 26 12M24
250 370 30 12M27
300 430 30 16M27
350 490 33 16M30
4005503616M33
4506003620M33
5006603620M33
6007703920M36
7008754224M39
8009904824M45
90010904828M45
100012105628M52
120014205632M52
140016406236M56
160018606240M56
DN K L NoSize
BS Flange Dimensions
BS4504 PN 16 DimensionsBS4504 PN 25 DimensionsBS4504 PN 40 Dimensions



  • Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
  • Standard: ANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
  • Size: 1/2-78 inch (DN15-DN2000)
  • Pressure: ANSI class 150,300,600,1500,2500, DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160
  • Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
  • Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
  • E-catalogue: Available , please visit catalogue of flange
  • Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
