Industrial Globe Valves Manufacturers Suppliers Exporters India
Distributors of Audco Valves in India,
Distributors of Audco Globe Valve, Audco Pressure Seal Valve, Audco Manifold Valve, Audco Cryogenic Valve, Audco Gate Valve, Audco Ball Valve, Audco Butterfly Valve, Audco Check Valve

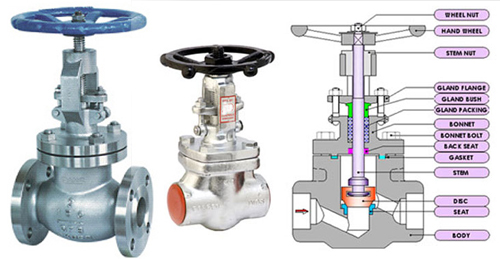

Metal Industries globe valves are heavy duty, outside screw & yoke type, bolted bonnet, rising stem and hand wheel. Valves are highly efficient for services requiring frequent operation and throttling. The internal passage within the valve diverts flow through 90º changes of direction resulting in pressure drop and turbulence. The most advanced design features provides the ultimate in dependable, economic flow control. They are available in wide range of sizes and weights. Globe valves are generally considered where moderate control or regulation of flow is required.
Globe valves are adequate for all service media. Valves are marked with flow direction since they are recommended to install with flow and pressure under the disc. It can also be installed in reverse condition depending upon the conditions. The globe valve is generally faster to operate due to less travel. But requires much force to operate compared to gate valves.
| Globe Valve Product Range | |
| Size Range | Globe Valve Class |
| 2" - 24" | Globe Valve Class 150 |
| 2" - 16" | Globe Valve Class 300 |
| 2" - 16" | Globe Valve Class 600 |
| 2" - 12" | Globe Valve Class 900 |
| 2" - 12" | Globe Valve Class 1500 |
| 1/2" - 11/2" | Globe Valve Class 800 |
| Globe Valve Design Standard | BS 1873 |
| Globe Valve Testing Standard | BS EN 12266 – 1 |
| Globe Valve Face To Face | ASME B 16.10 |
| Globe Valve End Connection | Flanged End - ASME B 16.5 |
| Butt Weld End - ASME B 16.25 | |
| Pressure – Temperature Chart | ASME B 16.34 |
| Globe Valve Operation | |
| Globe Valve Operator | Size Range |
| Globe Valve Handwheel | 2” – 10” - Class 150, 300 |
| 2” – 6” - Class 600 | |
| 2” – 4” - Class 900, 1500 | |
| Globe Valve Gear Operator | 12” & Above - Class 150 & 300 |
| 8” & Above - Class 900 & 1500 | |
| Globe Valve Material:- | ||
| STRUCTURE | End Connection | Flanged End Raised Face, Butt Weld End, RTJ,. ETC |
| Operation | Hand wheel, Gear Operator, Electrical Actuator, Pneumatic, Hydraulic | |
| MATERIAL | Shell | WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel |
| Trim | 13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel | |
We are exporting Industrial Globe Valves to more than 40 countries like UAE, EGYPT, TURKEY, uae, saudi arabia, qatar, oman, malaysia, sinagapore, indonesia, sudan, israel, south africa, kenya, Malaysia, Iran, Iraq, Saudi Arabia, Bahrain, Qatar, yemen, Kuwait, Argentina, Palestin, Algeria, Italy, Tunisia, Oman, Mauritania, USA, Bangladesh, Lebanon, Canada, Vietnam, INDIA, Sudan, Syria, Morocco, Libya, Jordon, And many more..
we also have our sales representatives to understand the requirements of our clients, we maintain ready stock of Industrial Globe Valves in Cities like uae, saudi arabia, qatar, oman, malaysia, sinagapore, indonesia, sudan, israel, south africa, kenya & many more...
