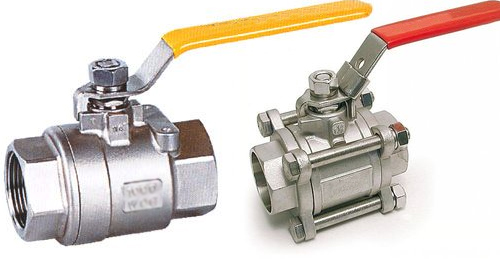

Industrial Ball Valve Manufacturers Suppliers Exporters India
Distributors of Audco Valves in India,
Distributors of Audco Globe Valve, Audco Pressure Seal Valve, Audco Manifold Valve, Audco Cryogenic Valve, Audco Gate Valve, Audco Ball Valve, Audco Butterfly Valve, Audco Check Valve
Metal Industries Trunnion Mounted Ball Valve is the result of Innovative engineering. It embodies all the quality, Performance, value and safety features required for critical applications.
In Trunnion Mounted Ball Valve, the ball rotates without moving on the horizontal axis, where as seats are floating and free to move on the same axis. As the pressure increases the force on the seat ring by the pressure pushes towards the ball giving ‘BIDIRECTIONAL’ sealing.
Thrust due to (Fluid Pressure + spring) both on the upstream and downstream, pushes seat ring towards the ball for positive sealing under all conditions.
When the valve is in closed position, the fluid trapped in the body cavity is subjected to thermal expansion and the valve cavity pressure increases. The excessive pressure buildup within the valve cavity is relieved automatically when the pressure inside exceed the spring load on the seat.
Internal Trunnion reduces the chance of fluid leakage to the atmosphere as in the case of external Trunnion Mounted ball Valves.
|
|
| ||||||||||||||||||||||||||||||||||||||||||
| Design Standard | API 6D/ASME B16.34 |
| Testing Standard | API 6D/API 598 |
| Face To Face | ASME B 16.10/API 6D |
| End Connection | Flanged End - ASME B 16.5 |
| Butt Weld End – ASME B 16.25 | |
| Pressure – Temperature Chart | ASME B 16.34 |
| Valve Operation | |
| Operator | Size Range |
| Lever | 2” – 3” - Class 150, 300, 600 |
| Gear Operator | 6” & Above - Class 150, 300, 600 |
| Material:- | ||
| STRUCTURE | End Connection | Flanged End Raised Face, Butt Weld End, RTJ,. ETC |
| Operation | lever, Gear Operator, Electrical Actuator, Pneumatic, Hydraulic | |
| MATERIAL | Shell | WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel |
| Trim | 13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel | |
We are exporting Industrial Ball Valve to more than 40 countries like UAE, EGYPT, TURKEY, uae, saudi arabia, qatar, oman, malaysia, sinagapore, indonesia, sudan, israel, south africa, kenya, Malaysia, Iran, Iraq, Saudi Arabia, Bahrain, Qatar, yemen, Kuwait, Argentina, Palestin, Algeria, Italy, Tunisia, Oman, Mauritania, USA, Bangladesh, Lebanon, Canada, Vietnam, INDIA, Sudan, Syria, Morocco, Libya, Jordon, And many more..
we also have our sales representatives to understand the requirements of our clients, we maintain ready stock of Industrial Ball Valve in Cities like uae, saudi arabia, qatar, oman, malaysia, sinagapore, indonesia, sudan, israel, south africa, kenya & many more...
