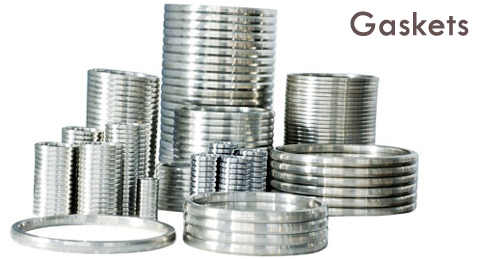

R -Style Ring joint oval Gaskets



Style R gaskets are manufactured in accordance with both API 6A and ASME B16.20 size/ratings. Available in both oval and octagonal configurations, both types are interchangeable on modern octagonal type grooved flanges.

Style R Ring Joint gaskets can be manufactured in accordance with all relevant standards to suit the following flange designations: API- 6A, ASME/ANSI B16.5, MSS SP44 (ASME B 16.47 Series A) & BS 1560.

Tolerances: ( Inches):

  » Width of Ring .......................................±0.008
  » Height of Ring ......................................±0.020
  » Pitch Diameter......................................±0.007
  » (Octagonal) Angle of 23°......................±1/2°



STYLE R RING JOINT GASKET DIMENSION TABLE

Please click here to download the R Type Ring Joint Gasket Dimension Table

STYLE R SELECTION TABLE

NOMINAL PIPE SIZE PRESSURE CLASSES ASME B16.5 API 6B ASME B16.47 Series A 150# 300# – 600# 900# 1500# 2500# 720# - 960# (1) 2000# 3000#  5000# 10000# 150# 300# - 600# 900# ½” - R-11 R-12 R-12 R-13 - - - - - - - - ¾” - R-13 R-14 R-14 R-16 - - - - - - - - 1” R-15 R-16 R-16 R-16 R-18 R-16 R-16 R-16 R-16 R-82 - - - 1 ¼” R-17 R-18 R-18 R-18 R-21 R-18 R-18 R-18 R-18 - - - - 1 ½” R-19 R-20 R-20 R-20 R-23 R-20 R-20 R-20 R-20 R-84 - - - 2” R-22 R-23 R-24 R-24 R-26 R-23 R-23 R-23 R-24 R-85 - - - 2 ½” R-25 R-26 R-27 R-27 R-28 R-26 R-26 R-26 R-27 R-86 - - - 3” R-29 R-31 R-31 R-35 R-32 R-31 R-31 R-31 R-35 R-87 - - - 3 ½” R-33 R-34 - - - - - - R-37 R-89 - - - 4” R-36 R-37 R-37 R-39 R-38 R-37 R-37 R-37 R-39 R-88 - - - 5” R-40 R-41 R-41 R-44 R-42 R-41 R-41 R-41 R-44 R-90 - - - 6” R-43 R-45 R-45 R-46 R-47 R-45 R-45 R-45 R-46 - - - - 8” R-48 R-49 R-49 R-50 R-51 R-49 R-49 R-49 R-50 - - - - 10” R-52 R-53 R-53 R-54 R-55 R-53 R-53 R-53 R-54 R-91 - - - 12” R-56 R-57 R-57 R-58 R-60 R-57 R-57 R-57 - - - R-57 R-57 14” R-59 R-61 R-62 R-63 - R-61 R-61 R-61 - - - R-61 R-62 16” R-64 R-65 R-66 R-67 - R-65 R-65 R-65 - - - R-65 R-66 18” R-68 R-69 R-70 R-71 - R-69 R-69 R-69 - - - R-69 R-70 20” R-72 R-73 R-74 R-75 - R-73 R-73 R-73 - - - R-73 R-74 22” - - - - - - - - - - R-80 R-81 - 24” R-76 R-77 R-78 R-79 - - - - - - - R-77 R-78 26” - - - - - - - - - - - R-93 R-100 28” - - - - - - - - - - - R-94 R-101 30” - - - - - - - - - - - R-95 R-102 32” - - - - - - - - - - - R-96 R-103 34” - - - - - - - - - - - R-97 R-104 36” - - - - - - - - - - - R-98 R-105                                                                 NOTE: (1) - Class 720, 960, 10000 and 2900 flanges to API 6B are obselete. Data is for informational purposes only.   (2) - R-30 is for lapped joint only.
