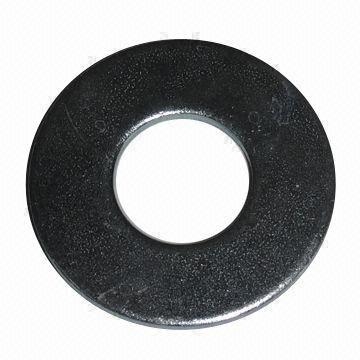

Stainless Steel WashersHastelloy WashersAlloy Steel WashersMonel Washers
Hastelloy WashersInconel Washers
Monel WashersDuplex & Super Duplex Steel Washers
Inconel WashersCopper WashersNickel WashersStainless Steel Washers

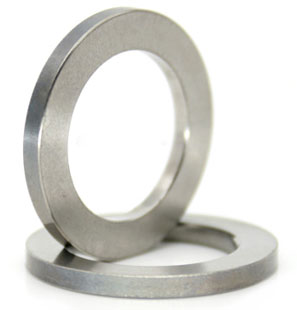

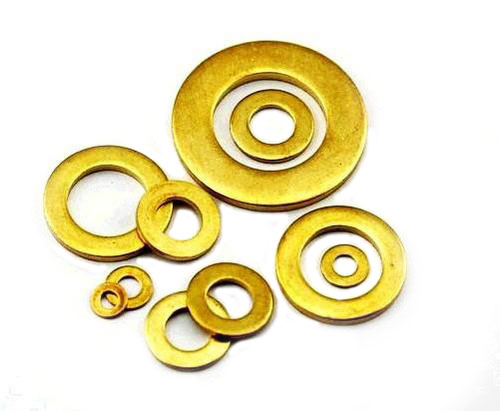

Copper WashersTitanium WashersBrass WashersNickel Washers
Titanium WashersAlloy Steel WashersDuplex / Super Duplex Steel WashersBrass Washers

Standard Flat Washers

Washers provide a smooth bearing surface and are used under the head of a bolt and / or a nut. Flat washers are covered under the ASTM specification F844. These washers are unhardened and intended for general use.

Stock

Diameters: 1/2" - 2-3/4"
Origin: Domestic
Finish: Black and hot-dip galvanized

Dimensions

Bolt Size A B C Weight In Pounds
Per 100 Pieces
Inside Diameter Outside Diameter Thickness
3/87/1610.0832
1/29/161-3/80.1094
5/811/161-3/40.1348
3/413/1620.14811
7/815/162-1/40.16515
11-1/162-1/20.16519
1-1/81-1/42-3/40.16522
1-1/41-3/830.16526
1-3/81-1/23-1/40.18033
1-1/21-5/83-1/20.18038
1-5/81-3/43-3/40.18043
1-3/41-7/840.18050
1-7/824-1/40.18057
22-1/84-1/20.18063
2-1/42-3/84-3/40.22083
2-1/22-5/850.23896
2-3/42-7/85-1/40.259110
33-1/85-1/20.284130

Dimensions per ASME B18.22.1 1965 (R1998)

Hardened Beveled Washers

Hardened beveled washers are covered under the ASTM specification F436. They are intended for American Standard beams and channels in structural Fasteners Nutsapplications, to compensate for lack of parallelism. For beveled washers to be used with low carbon steel bolts, please refer to malleable beveled washers.

Stock

Diameters: 1/2" - 1"
Origin: Import
Finish: Black and hot-dip galvanized

Bolt Size A B C T D Weight Per
100 Pieces
Square
Dimension
Thickness Diameter
1/21.750.450.160.310.5324.6
5/81.750.450.160.310.6923.3
3/41.750.450.160.310.8122.0
7/81.750.450.160.310.9420.4
11.750.450.160.311.1217.9
1-1/82.250.500.120.311.2533.8
1-1/42.250.500.120.311.3831.4
1-3/82.250.500.120.311.5029.1
1-1/22.250.500.120.311.6226.5

Dimensions per ASTM F436

Round Hardened Steel Washers

Washers provide a smooth bearing surface and are used under the head of a bolt and / or a nut. The chemical, mechanical, and dimensional requirements for hardened washers are covered under the ASTM specification F436. These washers are through hardened or carburized to add strength, but are physically smaller than a standard F844 flat washer. They are the recommended washer for any fastener other than a low carbon steel bolt.

Stock

Diameters: 1/2" - 2-3/4"
Origin: Domestic
Finish: Black and hot-dip galvanized

Dimensions

Bolt Size B A C Weight in Pounds
Per 1000 Pieces
Outside Diameter Inside Diameter Thickness
Min Max
1/21-1/1617/320.0970.17718
5/81-5/1611/160.1220.17733
3/41-15/3213/160.1220.17741
7/81-3/415/160.1360.17764
121-1/160.1360.17782
1-1/82-1/41-3/160.1360.177105
1-1/42-1/21-3/80.1360.177133
1-3/82-3/41-1/20.1360.177163
1-1/231-5/80.1360.177200
1-5/83-1/41-3/40.1780.28320
1-3/43-3/81-7/80.1780.28307
1-7/83-1/220.1780.28360
23-3/42-1/80.1780.28380
2-1/442-3/80.240.34560
2-1/24-1/22-5/80.240.34720
2-3/452-7/80.240.34920
35-1/23-1/80.240.341040
3-1/463-3/80.240.341350
3-1/26-1/23-5/80.240.341633
3-3/473-7/80.240.341880
47-1/24-1/80.240.342200

Lock Washers

Split lock washers provide greater bolt tensioning for tighter assemblies and provide protection against loosening resulting from vibration. Fasteners NutsLock washers can be used with a standard washer to provide uniform bearing surface. These washers are intended for general use.

Stock

Diameters: 1/4- 3
Finish: Black and hot-dip galvanized

Dimensions

Bolt Size A B C Weight in Pounds
Per 100 Pieces
Inside Diameter
Max
Outside Diameter
Max
Thickness
Min
1/40.2600.487.062.24
5/160.3220.5830.078.40
3/80.3850.6800.094.60
7/160.4500.7760.1091
1/20.5120.8690.1251.3
5/80.6411.0730.1562.4
3/40.7661.2650.1884.3
7/80.8941.4590.2196.0
11.0241.6560.2508.8
1-1/81.1531.8470.28112
1-1/41.2802.0360.31216
1-3/81.4082.2190.34421.9
1-1/21.5342.4190.37528.2
1-3/41.7892.6790.38930.35
22.0392.9360.42232.50
2-1/42.2933.2210.44039
2-1/22.5433.4710.44045
2-3/42.7933.8240.45850
33.0434.0740.45856

Malleable Iron Washers

Malleable cast iron round washers are used in dock and wood construction. These oversized washers have a large bearing surface designed to prevent bolt heads and nuts from pulling into the wood.

Stock

Diameters: 3/8" - 1"
Origin: Domestic (no keyhole) and Import (keyhole)
Finish: Black and hot-dip galvanized

Dimensions

Bolt Size A T Weight In Pounds
Per 100 Pieces
Outside Diameter Thickness Gauge
3/82-1/21/418
1/22-1/21/422
5/82-3/45/1632
3/437/1642
7/83-1/27/1655
13-3/41/263
1-1/84-1/21/296
1-1/459/16121
1-1/263/4187

Reference ASTM A47 for general casting information.

Round Plate Flat Washers

Round plate washers are simply a low carbon steel, oversized cut washer designed to provide a larger bearing surface than an F844 standard flat washer.

Plate washers are commonly used in wood construction to prevent bolt heads or nuts from pulling into the wood. Square plate washers are also available. A plate washer is used in a variety of projects including: marine and timber.

Stock

Diameters: 3/8" - 1"
Origin: Import
Finish: Black and hot-dip galvanized

Bolt Size B A C Weight Per 100 Pieces
Outside Diameter Inside Diameter Thickness Gauge
3/827/163/1616
1/22-1/49/163/1620
5/82-1/211/161/432
3/4313/161/446
7/83.515/165/1679
141-1/163/8124
1-1/451-3/83/8193
1-1/251-5/83/8184

Square Plate Washers

Square plate washers are made from low carbon steel and have a larger surface area than round washers. Stock sizes are available for bolts Fasteners Nutsfrom 1/2" to 1", with thickness of .195" up to .395". For the best corrosion resistance, hot-dip galvanized plates are recommended. Complete dimensions are provided below.

Custom plate washers can be quickly fabricated to meet your requirements.

Stock

Diameters: 1/2" - 1"
Origin: Import
Finish: Black and hot-dip galvanized

Related Products

Round Plate Washers
Flat F844 Washers
Hardened Round F436 Washers

Stock

Diameters: 3/8" - 1"
Origin: Import
Finish: Black and hot-dip galvanized

Bolt Size B A C Weight Per 100 Pieces
Side Length Inside Diameter Thickness Gauge
1/229/16.19521.00
5/82-1/211/16.2542.50
3/42-3/413/16.31563.00
7/8315/16.31574.29
13-1/21-1/16.39133.00
