Industrial Copper Flanges

Metal Industries is one of the oldest manufacturers, dealer, distributor, stockist & suppliers of Blind Flanges, Reducing Threaded Flanges, Lap Joint Flanges, Flange Gaskets, Threaded Flanges, Socketweld Flanges, Flanges Bolts, Ring Flange, Spectacle Blind Flanges, Weld Neck Flanges, Orifice Flange, Slip-On-Flanges, High Hub Blinds Flanges, which are manufactured using superior grade of steel like SS Flanges / Stainless Steel Flange, 310 Flanges, 321 Flanges, 202 Flanges, 347 Flanges, 304 Flange, 316 Flanges, 316L Flanges., These Flanges are most durable and manufactures to fit in different size of Pipes. Engineers & World's Best Project Consultants use these Flanges in Machined Components, Metal Industries manufacturing Flanges & supplying to Government sector companies since 2 decades, we are approved vendor of Flanges in top notch government sector companies like ONGC, Indian Oil, NTPC, BHEL, ONGC, HPCL BPCL etc.we are also Saudi Aramco approved supplier of Flanges, we have supplied Flanges to companies involved in Equipment Manufacturing, Mining, Oil Refineries, Chemical manufacturing, Steel and Aluminum Manufacturing, Utilities and Transportation, and Industrial Construction We Also Supply & Maintain huge stock of Other Grades of Flanges like Alloy Steel Flange, A182 F1 / F5 / F9 / F11 / F22 / F91 FLANGES, Nickel Alloy 200 Flanges, Nickel Alloy 201 Flanges, S32750 Duplex Steel UNS S31803 Flanges, Flanges, Duplex Steel UNS S32205 Flanges, Carbon Steel Flanges, Copper Nickel Flange, Inconel 600, Incolloy 800 Flanges, Hastelloy, Monel 400 Flanges,

Copper Flange Adapter 150lb
Copper Flange Adapter 150lb

Drilling to Match ANSI B 16.5 Specifications
Sizes 1-1/2" thru 8"
Flanges shall be drilled to ANSI B 16.5 150 Standard powder coated with a EPDM insulator adhered to the plate steel flange protruding inside of the steel flange to prevent contact with the Copper Companion Flange Adapter. The Copper component of the flange adapter shall be manufactured to ASME B16.22 - 1995

Specifications

SIZEWORKING PRESSURE (at atmospheric)MATERIALTHICKNESS
1-1/2"

450 PSI

Plate Steel.63
2"450 PSIPlate Steel.63
2-1/2"450 PSIPlate Steel.63
3"450 PSIPlate Steel.63
4"450 PSIPlate Steel.709
5"450 PSIPlate Steel.748
6"450 PSIPlate Steel.866
8"450 PSIPlate Steel.866

Service Temperature: -66F to +272F

DIMENSIONS OF SOLDER JOINTManufatured to ASME B 16.22-95

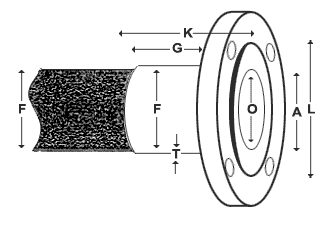

Diagram of Copper Flange Adapter 150lb

SIZELENGTH (K) MinFEMALE END (F)DEPTH (G)
Min
THICKNESS (T)
Min
ID (O)
Min
OD Cu FLANGE (L) Min
MinMax
1-1/2"1.811.621.631.09.0511.473.10
2"1.852.122.331.34.0591.943.70
2-1/2"2.022.622.631.47.0672.424.20
3"2.353.123.131.66.0752.895.00
4"2.814.124.132.16.0963.846.20
5"3.875.125.132.66.1114.707.30
6"4.316.126.133.09.1245.728.40
8"5.508.128.134.00.8758.8013.50



Copper Flange Adapter 300lb
Copper Flange Adapter 300lb

Drilling to Match ANSI B 16.5 Specifications

Sizes 1-1/2" thru 8"
Flanges shall be drilled to ANSI B 16.5 300 Standard powder coated with a EPDM insulator adhered to the plate steel flange protruding inside of the steel flange to prevent contact with the Copper Companion Flange Adapter. The Copper component of the flange adapter shall be manufactured to ASME B16.22 - 1995.

Specifications

SIZEWORKING PRESSURE (at atmospheric)MATERIALTHICKNESS
1-1/2"

600 PSI

Plate Steel.709
2"600 PSIPlate Steel.787
2-1/2"600 PSIPlate Steel.866
3"600 PSIPlate Steel.0945
4"600 PSIPlate Steel1.063
5"600 PSIPlate Steel1.141
6"600 PSIPlate Steel1.181
8"600 PSIPlate Steel1.378

Service Temperature: -66F to +272F

DIMENSIONS OF SOLDER JOINT Manufatured to ASME B 16.22-95

Diagram of Copper Flange Adapter 300lb

SIZELENGTH (K) MinFEMALE END (F)DEPTH (G)
Min
THICKNESS (T)
Min
ID (O)
Min
OD Cu FLANGE (L) Min
MinMax
1-1/2"1.811.621.631.09.0511.473.10
2"1.852.122.331.34.0591.943.70
2-1/2"2.022.622.631.47.0672.424.20
3"2.353.123.131.66.0752.895.00
4"2.814.124.132.16.0963.846.20
5"3.875.125.132.66.1114.707.30
6"4.316.126.133.09.1245.728.40
8"5.508.128.134.00.8758.8013.50



Copper Flange Roll Grooved for pipes
Copper Flange Roll Grooved 150/125

Drilling to Match ANSI B 16.5 Specifications

Sizes 2" thru 6"
Flanges shall be drilled to ANSI B 16.5 150/125 Standard powder coated with a EPDM insulator adhered to the plate steel flange protruding inside of the steel flange to prevent contact with the Copper Companion Flange Adapter.

Specifications

SIZEWORKING PRESSURE (at atmospheric)MATERIALTHICKNESS
2"450 PSIPlate Steel.63
2-1/2"450 PSIPlate Steel.63
3"450 PSIPlate Steel.63
4"450 PSIPlate Steel.709
5"450 PSIPlate Steel.748
6"450 PSIPlate Steel.866

Service Temperature: -66F to +272F

DIMENSIONS OF ROLL GROOVED COPPER COMPANION FLANGE ADAPTER

Diagram of Copper Flange Roll Grooved for pipes

GASKET SEATGROOVE WIDTHGROOVE DIAMAX
ALLOW
FLARE
OVERALL LENGTHTHICKNESS THIN1.0 MINOD of FLANGE
SIZE(A) +/-03(B)=/-03(c)=00 02DIA(K)(T)(0)(L)
2"0.6100.3002.0292.222.630.0591.943.70
2-1/2"0.6100.3002.5252.792.790.0672.424.20
3"0.6100.3003.0253.123.120.0752.895.00
4"0.6100.3004.0193.623.620.0963.846.20
5"0.6100.3005.0193.823.820.1114.707.30
6"0.6100.3005.9994.274.270.1245.728.40



Copper SPIGOT Flange for pipes
Copper Press Fit Flange 150lb (formerly Spigot)

Drilling to Match ANSI B 16.5 Specifications

Features

  • Sizes 2" through 4"
  • Quick and easy Press Fit application. Save Time, Save Money.
  • Also suitable for soldering or grooving.
  • Suitable for all brass companion flange applications.
  • No cracking or warping due to overheating, or cooling too rapidly.
  • Heating and cooling time reduced or eliminated.
  • Adjustable rotating flange, eliminating 2 holing.
  • 100% Electrolysis Protection.* Save money on gases and solder.
  • Copper component is 99.9% copper eliminating any lead issues.
  • Burst pressure for 2" - 4" is 1000 PSI.
  • Temperature range is -66F to 272F.
  • Applications include all butterfly and flanged gate valve installations, along with pumps, boilers, chillers, backflow devices.
  • No extra costs, such as dielectric insulators. Available in 150LB, 300LB,

Specifications

WORKING PRESSURE

SIZEWORKING PRESSURE
(at atmospheric)
MATERIALTHICKNESS
2"450 PSIPlate Steel.63
2-1/2"450 PSIPlate Steel.63
3"450 PSIPlate Steel.63
4"450 PSIPlate Steel.709

SERVICE TEMPERATURE: -66F TO +272F

Diagram Copper SPIGOT Flange for pipes

SIZE

OD CU
FLANGE
(A)

FLARE

(B)

SPIG END

(C)

LENGTH

(L)

THICKNESS

(T)

2"3.752.312.1256.000.07
2-1/2"4.330.6252.6256.000.08
3"5.010.6253.1256.000.09
4"6.480.6254.1256.000.11



We export to: Exporter & Suppliers of Industrial Copper Flanges in uae, saudi arabia, qatar, oman, malaysia, sinagapore, indonesia, sudan, israel, south africa, kenya etc.

Flanges Packing

Metal Industries also emphasis on the packaging . The Industrial Copper Flanges are packed in wooden corrugated boxes foiled in bubble wraps.
