RX Style Ring joint Gaskets


Style RX is a pressure-energized adaptation of the standard Style R gasket. The RX is designed to fit the same groove design as a standard Style R, making the joints interchangeable. The modified design uses a pressure-energized effect that improves the efficiency of the seal as the internal pressure of the system increases.

Tolerances: ( Inches): '

» Width of Ring ........................................+0.008,-0.000
» Height of Ring .......................................+0.008,-0.000
 (A plus tolerance of 0.008 inches for width and height is permitted, provided the variation in  width or height does not exceed 0.004 inches throughout its entire circumference)
» OD of Ring ............................................±0.020,-0.000
» Angle of 23°…………................................±1/2°

Hole diameter shall be as follows:

» RX82 through RX85...............................0.06”
» RX86 and RX87......................................0.09”
» Rings RX88 through RX91......................0.12”

NOTE: Only Rings RX82 through RX91 have a pressure passage hole through the cross section. Center line of hole is located on the mid-point of the width flat.

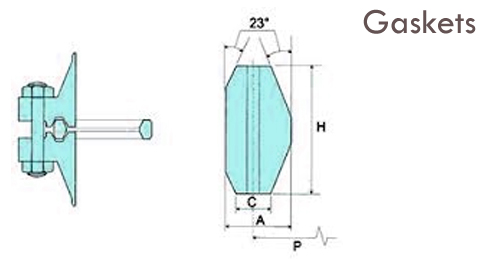

STYLE RX RING JOINT GASKET DIMENSION TABLE
RING NO.

PRESSURE CLASS RATINGS ( psi )
Pitch Diameter of Ring

Outside Diameter of Ring

Width of

Ring

Height of Ring

Gasket Weight lbs.

for API 6BX

2000
3000
5000
Nominal Pipe Size
P

OD

A

H



RX20

-
-
-
2.688

3.000

0.344

0.750

0.527

RX20

-
2 1/16
2.688

3.000

0.344

0.750

0.527

RX23

2 1/16
-
-
3.250

3.672

0.469

1.000

1.15

RX24

2 1/16
2 1/16
3.750

4.172

0.469

1.000

1.33

RX25

-
-
3  1/8
4.000

4.313

0.344

0.750

1.42

RX26

2 9/16
-
-
4.000

4.406

0.469

1.000

1.50

RX27

2 9/16
2 9/16
4.250

4.656

0.469

1.000

1.73

RX31

3 1/8
3 1/8
-
4.875

5.297

0.469

1.000

1.91

RX35

-
-
3  1/8
5.375

5.797

0.469

1.000

2.09

RX37

4 1/16
4 1/16
-
5.875

6.297

0.469

1.000

2.27

RX39

-
-
4 1/16
6.375

6.797

0.469

1.000

2.54

RX41

-
-
-
7.125

7.547

0.469

1.000

2.72

RX44

-
-
-
7.625

8.047

0.469

1.000

2.96

RX45

7 1/16
7 1/16
-
8.313

8.734

0.469

1.000

3.66

RX46

-
-
7 1/16
8.313

8.750

0.531

1.125

8.56

RX47

-
-
-
9.000

9.656

0.781

1.625

3.79

RX49

9
9
-
10.625

11.047

0.469

1.000

5.36

RX50

-
-
9
10.625

11.156

0.656

1.250

4.56

RX53

11
11
-
12.750

13.172

0.469

1.000

6.45

RX54

-
-
11
12.750

13.281

0.656

1.250

5.36

RX57

13 5/8
13 5/8
-
15.000

15.422

0.469

1.000

26.40

RX63

-
-
-
16.500

17.391

1.063

2.000

6.63

RX65

16 3/4
-
-
18.500

18.922

0.469

1.000

9.39

RX66

-
16 3/4
-
18.500

19.031

0.656

1.250

7.52

RX69

-
-
-
21.000

21.422

0.469

1.000

20.14

RX70

-
-
-
21.000

21.656

0.781

1.625

11.63

RX73

21 1/4
-
-
23.000

23.469

0.531

1.250

22.10

RX74

-
20 3/4
-
23.000

23.656

0.781

1.625

0.790

RX82

-
-
-
2.250

2.672

0.469

1.000

0.880

RX84

-
-
-
2.500

2.922

0.469

1.000

0.880

RX85

-
-
-
3.125

3.547

0.531

1.000

1.79

RX86

-
-
-
3.563

4.078

0.594

1.125

1.98

RX87

-
-
3.938

4.453

0.594

1.125

3.22

RX88

-
-
-
4.875

5.484

0.688

1.250

2.98

RX89

-
-
-
4.500

5.109

0.719

1.250

6.82

RX90

-
-
-
6.125

6.875

0.781

1.750

17.10

RX91

-
-
-
10.250

11.297

1.188

1.781

3.31

*RX99

-
-
-
9.250

9.672

0.469

1.000

-

RX201

-
-
1 3/8

1.813

2.026

0.226

0.445

-

*RX205

-
-
1 13/16

2.250

2.453

0.219

0.437

-

*RX210

-
-
2 9/16

3.500

3.844

0.375

0.750

-

*RX215

-
-
4 1/16

5.125

5.547

0.469

1.000

-

*RX215

-
-
4 1/16 X 4¼

5.125

5.547

0.469

1.000-

-



STYLE RX RING JOINT GASKET SELECTION TABLE



NOMINAL PIPE SIZE
PRESSURE CLASSES
API 6B
720#   (1)
960# (1)
2000#
2900# (1)
3000#
5000#
1”
-
-
-
RX-82
-
-
1 3/8”
-
-
-
-
-
RX-201
1 ½”
RX-20
RX-20
RX-20
RX-84
RX-20
RX-20
1 13/16"
-
-
-
-
-
RX205
2”
RX-23
RX-23
RX-23
RX-85
RX-24
RX-24
2 ½”
RX-26
RX-26
RX-26
RX-86
RX-27
RX-27
2 9/16”
-
-
-
-
-
RX210
3”
RX-31
RX-31
RX-31
RX-87
RX-31
RX35
3 ½”
-
-
-
RX-89
-
-
4”
RX-37
RX-37
RX-37
RX-88
RX-37
RX-39
4 1/16"
-
-
-
-
-
RX-215
5”
RX-41
RX-41
RX-41
RX-90
RX-41
RX-44
6”
RX-45
RX-45
RX-45
-
RX-45
RX-46
8”

RX-49

RX-99 (2)

RX-49
RX-49
-

RX-49

RX-99 (2)

RX-50
10”
RX-53
RX-53
RX-53
RX-91
RX-53
RX-54
12”
RX-57
RX-57
RX-57
-
RX-57
-
14”
-
-
-
-
-
RX-63
16”
RX-65
RX-65
RX-65
-
RX-69
-
18”
RX-69
RX-69
RX-69
-
RX-73
-
20”
RX-73
RX-73
RX-73
-
RX82
-

NOTES:

(1) - Class 720, 960, 10000 and 2900 flanges to API 6B are obselete. Data is for informational purposes only.

(2) - Crossover Flange Connection.
